24" Wide Wine Cellar

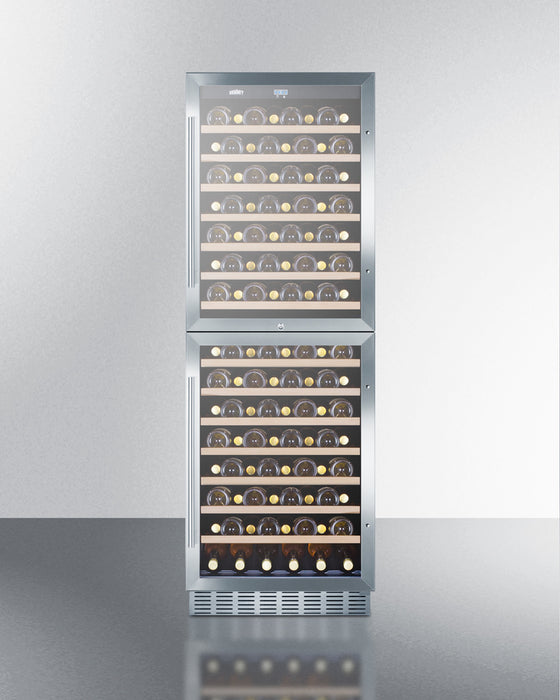

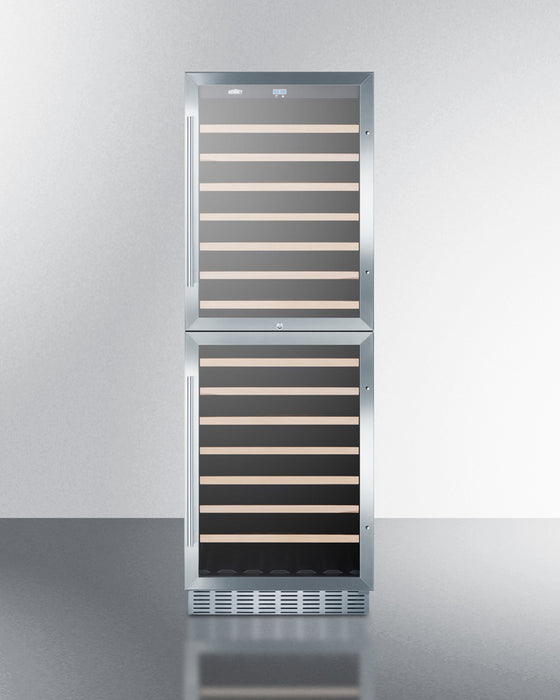

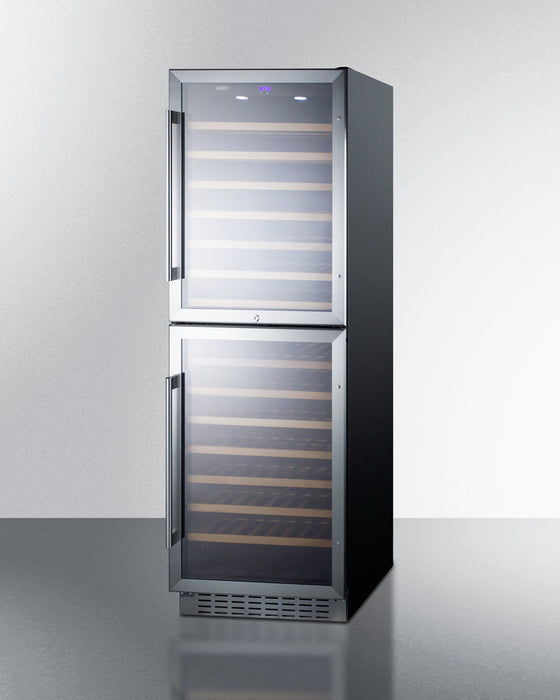

SUMMIT SWC1875B is a built-in capable two-zone wine cellar designed to store up to 118 bottles.
With an easy-fitting 24" footprint, the SWC1875B can be used built-in or freestanding and features two distinct temperature zones, each with its own reversible glass door. Store white and sparkling wine in the upper zone while preserving your reds below at a warmer temperature. Two digital thermostats let you set the proper conditions for your collection, with a digital readout in Fahrenheit or Celsius.

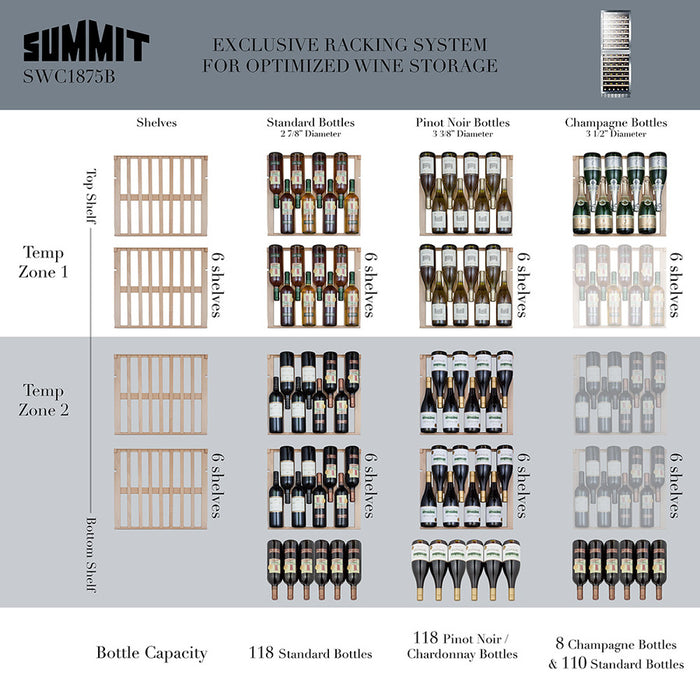

Inside, the SWC1875B includes 14 slide-out wooden shelves to properly hold bottles. Store up to 118 standard 750ml Bordeax style bottles, or 118 wider Burgundy style bottles (generally used for Chardonnay or Pinot Noir). If storing champagne, the top shelf can hold 8 bottles. Recessed LED lighting offers an attractive display and a factory installed lock ensures the security of your collection. This model has a jet black cabinet with stainless steel trimmed glass doors. Professional chrome handles and a stainless steel kickplate complete the elegant look.
Features
Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top
Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles
Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below
Meets UL-471 commercial standards
Elegant tint with user-reversible convenience and stainless steel trim
Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

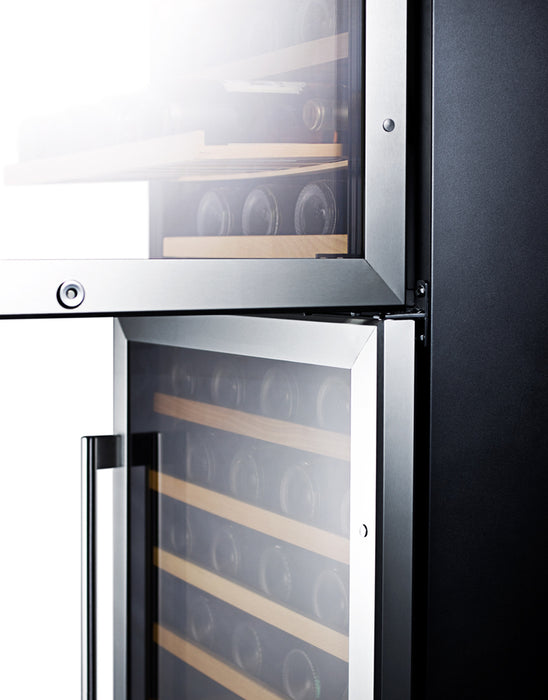

Keyed lock secures both sections

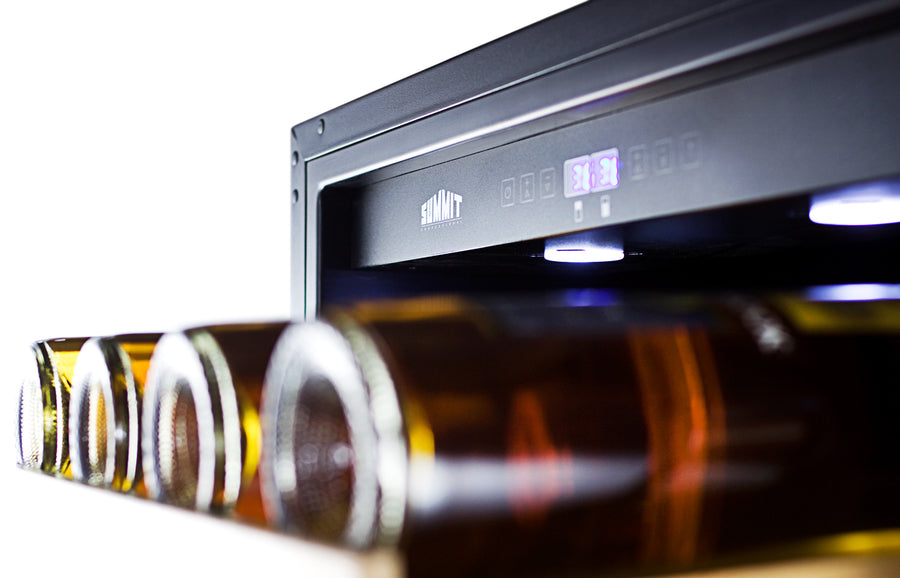

Attractive and energy efficient illumination for your collection
14 easy gliding shelves
Reduced maintenance with auto defrost system
Sturdy chrome handles add a professional look
Optional setting lets you disable the lighting and alarm for up to 48 hours
An added touch of elegance
40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
|
Overview
|
|
|---|---|
| Height of Cabinet | 69.63" (177 cm) |
| Width | 23.63" (60 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 44.75" (114 cm) |
| Bottles | 118 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 191.0 lbs. (87 kg) |
| Shipping Weight | 255.0 lbs. (116 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101030746 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 14 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.07 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 27.75" (70 cm) |
| Interior Width 1 | 20.0" (51 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Temperature Range | 41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
| Interior Height 2 | 31.0" (79 cm) |
| Interior Width 2 | 20.0" (51 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
| Sabbath Mode | Yes |
