24" Wide Wine Cellar

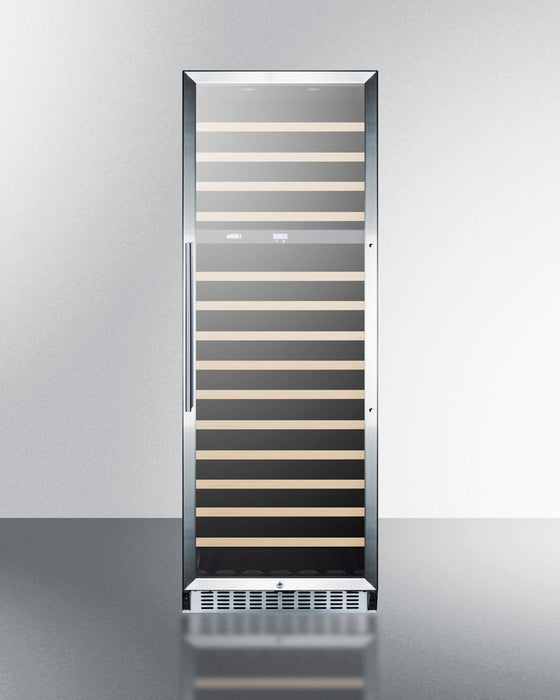

SUMMIT SWC1966 is a full-sized dual zone wine cellar designed for optimum wine storage with user-friendly convenience.
Sized at just under 24" wide and 27" deep, the SWC1966 can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit. The larger lower compartment is best suited for red wines stored between 55º and 72ºF, while the upper zone is designed for white wine and champange stored between 41º and 55ºF. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.
The SWC1966 has a jet black cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.
With its ideal size and handy features, the SWC1966 is an elegant yet affordable wine cellar for full storage needs.
Features
Interior can hold up to 160 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 118. For champagne, the interior can hold 22 bottles (plus an additional 132 of the standard Bordeaux style)
Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
Lower zone is ideal for storing red wine (temperature range: 55ºF to 72ºF) while the upper zone accommodates white and sparkling wine stored between 41ºF and 55ºF
Meets UL-471 commercial standards
Set and adjust two temperature zones separately with easy-to-use digital controls with an LED display in Celsius or Fahrenheit
Recessed lighting offers an elegant, efficient view of your collection
14 wooden shelves offer proper storage
Keyed lock for trusted security
User-reversible door swing allows for more flexibility in placing the unit
Allows the unit to be used freestanding
Stainless steel handle completes the professional look
Reduced user maintenance with auto defrost operation
Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
Audible alarm sounds if the storage temperature rises out of recommended range
Alarm sounds if the door is left open for more than 60 seconds
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable the lighting and alarm for up to 48 hours
Sleek look with added protection
Environmentally safe operation with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
|
Overview
|
|
|---|---|
| Height of Cabinet | 69.75" (177 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.63" (68 cm) |
| Depth with Handle | 27.75" (70 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Capacity | 15.9 cu.ft. (450 L) |
| Bottles | 160 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 187.0 lbs. (85 kg) |
| Shipping Weight | 261.0 lbs. (118 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101031972 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 14 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.91 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 29.5" (75 cm) |
| Interior Width 1 | 19.75" (50 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.75" (50 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
| Interior Height 2 | 31.0" (79 cm) |
| Interior Width 2 | 19.75" (50 cm) |
| Interior Depth 2 | 21.0" (53 cm) |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
